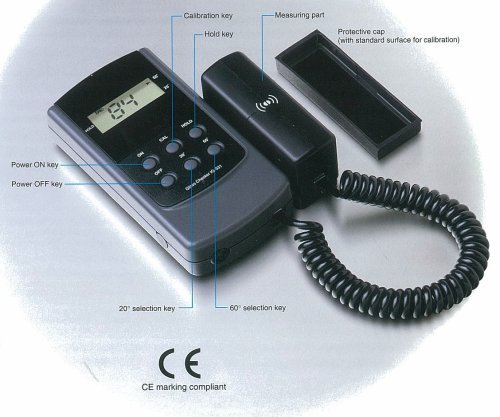

The IG-331 gloss meter is designed for ease of operation, and to improve quality control inspection in various industrial applications.
The flexible, remote connection of the probe to the display unit ensures greater efficiency and safety in all applications. For corner or aperture place this gloss meter will surely be effective measuring tools. Also, this model enables easy switching between measuring angles (60° or 20°).
Choose 60° for standard gloss measurements. For high-gloss surfaces with gloss values over 70, simply switch to the 20° measuring angle. The selectable angle feature makes it easy to measure glossy surfaces.
Just press the calibration key (CAL) to start the automatic, sequential zero-span calibration.
Optical system |
|
60°measurement | Incident angle 60° Reception angle 60° |
20°measurement | Incident angle 20° Reception angle 20° |
Measuring area |
|
60°measurement: 3x6mm oval 20°measurement: 3x4mm oval |
|
Light source |
|
LED(wavelength: 890nm) | |
Detector |
|
SPD(silicon photodiode) | |
Measuring range |
|
0-100 | |
Display range |
|
0-199(resolution:1) | |
Reproducibility |
|
±5% F.S.%1 digit | |
Power source |
|
A3 dry-cell battery x4 Not rechargeable |
|
Continued use time |
|
50 hours or more | |
Ambient conditions |
|
10-40℃ | |
Dimensions |
|
Main body | 140(W)x75(H)x34(D)mm 5.5(W)x3.0(H)x1.3(D)in |
Optical system | 88(W)x30(H)x45(H)mm 3.5(W)x1.2(H)x1.8(H)in |
Mass |
|
Approx. 350g(with battery) | |
Additional functions |
|
Automatic calibration Automatic power cut-off Display hold Overrange display Battery life display |
